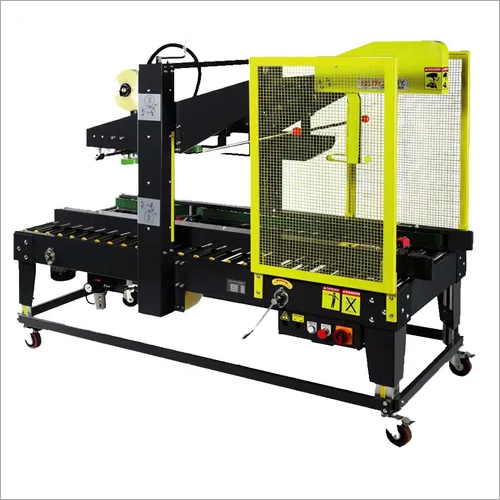

Carton Sealing Machine VP 557 F

Carton Sealing Machine VP 557 F

3,75,000 INR/Piece

Product Details:

  • Application Automatic Taping Cartons
  • Color Black & Lime Green Colour
  • Automation Grade Automatic
  • Type Carton Sealing Machine with Flap Folding
  • Material Ms Powder Coated
  • Automatic Grade Automatic
  • Drive Type Other
  • Supply Ability : 5 Piece Per Week
  • Click to view more
X

Price And Quantity

  • 1 Piece
  • 3,75,000 INR/Piece

Product Specifications

  • Carton Sealing Machine with Flap Folding
  • 50 HZ, SINGLE PHASE Volt (v)
  • 2086 X 1002 X 1551 ~ 1916 Millimeter (mm)
  • 310 Kilograms (kg)
  • Other
  • 220 Volt (v)
  • Automatic
  • Automatic
  • Ms Powder Coated
  • Automatic Taping Cartons
  • Black & Lime Green Colour

Trade Information

  • Kolkata
  • Telegraphic Transfer (T/T), Cheque, Cash in Advance (CID), Cash Advance (CA)
  • 5 Piece Per Week
  • 3 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Standard
  • Africa, Asia
  • Madhya Pradesh, Assam, Arunachal Pradesh, Bihar, Sikkim, Odisha, Mizoram, Nagaland, Jharkhand, Manipur, Tripura, Meghalaya, West Bengal, Chhattisgarh, All India

Product Description

Carton Sealing Machine with FlapFolding (VP 557 F)

Introduction

Iti s an Automatic Flaps Folding Carton Sealer with Side Drive & latest technology. This can be fitted after carton erector. This machine has found application in all kind of industries where packing volume is high. The machine is ideal for batch packing of uniform cartons by applying BOPP Self Adhesive Tapes. It folds & seals the upper flaps of the cartons automatically at tremendous speed as compared to manual methods. The tape is also applied properly without leaving any scope for opening up-transit, thus avoiding any kind of in-transit loss/ pilferage of the product.

Special Feature

  • Automatic Upper Flap-Folding & Taping

Salient Features/ Benefits

  • New Tape Head
  • Seals in One Process
  • Side Drive
  • Reliable Taping Heads
  • Both Side Compression Rollers
  • Top Mast With Cushion
  • Belt Driven with Universal Bearing
  • Regular Mode & Memory Mode
  • Simple Design & Sturdy Construction
  • High Productivity
  • Low Power Consumption

Advantages

  • Smoothest& Fastest Operation

Automatic mobilization of cartons, automatic upper flap folding, automatic tape pasting ensures smooth operation consistently with high speed. It can work equivalent to four Manual Sealing Systems. Eleven boxes can be sealed per minute; if carton/ box length is 300 MM. Sealing rate is varied depending on box length, conveyor speed & feeding efficiency. Need to note, conveyor speed can be customized.

Labor Cost Savings

Asit is connected to Fully Automatic Production Line, one layman is sufficient to control the whole operating system besides managing production.

Low Maintenance

The offered machine is Taiwanese, includes high qualitys parts & components,thereby minimum maintenance is required.

User Friendly

This machine is easy to operate; as this machine itself takes the initiative to regulate height, width, convenient, rapid, & simple without manual conditioning.

Safety

This machine is equipped with blade guard; thereby preventing accidental stabbing operation & ensuring secure production.

Better Finishing

Of course BOPP Tape Sealing by Machine reflects better finishing in compared to manual method.

Mobility

It can be easily shifted in the shop floor from one place to another place.

Price: Rs.3, 75,000/

Industrial Application

Carton sealing machine is widely used in the industries such as Electrical Domestic Appliances, Foodstuffs, Biscuit, Edible Oil, Beverages, Transport & Logistics, Textiles, General Merchandise, Chemical, Pharmaceutical, Manufacturing, Food Processing, FMCG, Lubricants & many more.

Technical Specifications


Size/Dimension

L 2086 x w 1002 x h 1551 ~ 1916 (in mm)

I Deal In

New only

Weight

310 kgs

Power

50 hz

Tape Width

48 mm / 72 mm (size can be customized as per requirement)

Driven Type

Side

Packaging Size

L 200~600x w 120~500 x h 110~500 mm (2 ) l 200~600 x w 145~500 x h 110~500 mm (3 )

Automation Grade

Automatic

Model Name/Number

VP 557 F

Conveyor Speed

11 boxes / min. For box length 300 mm (belt speed 20 mtrs / min

Phase

Single

Voltage

220 v

Brand

Vijaypack

Material

Ms powder coated

Usage/Application

Sealing cartons with BOPP & PVC tape
